How Does a GPS Tracking Device Work? From the Diagnostic Port to the Dashboard

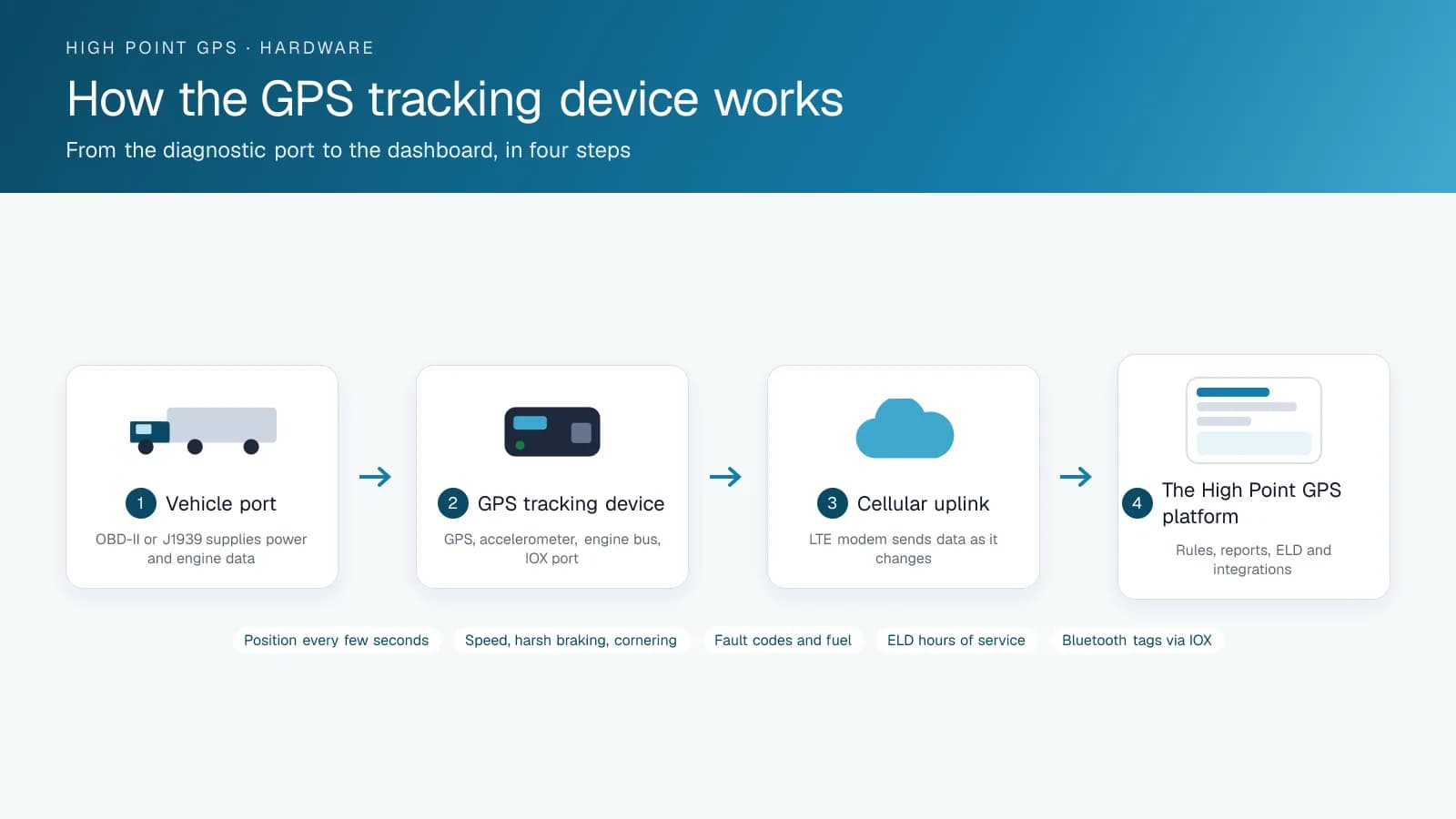

A GPS tracking device connects at the vehicle's diagnostic port through a T-harness, with no wires cut, reads engine data, adds its own position and motion readings, and sends it all over cellular to the platform. The port is the OBD-II connector under the dash on cars, vans and light trucks, or the J1939 nine-pin connector on heavy trucks. That one connection gives the device power from the vehicle's battery and a link to the engine's data bus, where the vehicle broadcasts speed, RPM, odometer, fuel level, coolant temperature, seat belt status, fault codes and, on electric vehicles, state of charge. The device reads this data without changing how the vehicle runs.

Inside the housing sits a GNSS receiver that fixes the vehicle's position from GPS and, on current models, other satellite constellations. Next to it, a three-axis accelerometer senses acceleration, braking and cornering force and detects collisions. A processor combines both with the engine data and decides what is worth sending. The device logs all the time but transmits on change, using a curve-based algorithm that keeps the shape of the trip and drops redundant points. That is how the platform draws accurate trip lines without a huge data plan. The IOX expansion port on the side takes add-ons such as Bluetooth readers, driver ID, temperature sensors and cameras, and their data travels with the rest.

An LTE modem in the device sends the data to the platform's servers over the cellular network, through a SIM built into the device and a plan bundled with the subscription. Out of coverage, the device stores the data and uploads it once the signal returns, so a trip through a dead zone still shows in full. The data is encrypted in transit and authenticated to the device, and the device updates its own firmware over the same link.

Once the data arrives, it turns into what your fleet works with: a live map, trip history, exception rules that fire on speeding, idling or a geofence, driver scorecards, engine fault alerts, maintenance reminders based on engine hours, IFTA distance by jurisdiction and, with the driver app, the ELD hours-of-service record. Add-ins from the add-on library and the API carry the same data into dispatch, maintenance and camera systems. A fleet can connect the device itself, but High Point GPS always recommends a professional installer. A Geotab partner such as High Point GPS arranges the install, configures the rules and reports, and supports the device afterward.

Fleets new to the device often ask how much data it moves and whether it drains the battery or the data plan. Internally the device reads its position every second, but it transmits only the points that change the shape of the trip. A straight highway run produces a handful of points per kilometre, and a city route full of turns produces more. Engine readings go out on change or every few minutes, fault codes go immediately, and accelerometer events go with the readings around them. When the vehicle is parked, the device sleeps and wakes to check in on a longer interval. In sleep mode it draws only a few milliamps, so normal parking does not drain a healthy battery. The data plan comes with the subscription and is sized for this pattern: a vehicle on the road all day sends more, and one that spends its life in a yard produces almost nothing.

The GNSS receiver in the device listens to satellites that each broadcast their own position and the current time, measures how long each signal took to arrive, and turns those delays into distances. With enough satellites in view, it solves for its three-dimensional position and corrects its own clock at the same time.

There are plenty of satellites to work with. The US Space Force commits to at least 24 operational GPS satellites 95% of the time and has flown 31 for well over a decade, in orbits about 20,200 km up, arranged so a receiver can see at least four from virtually any point on the planet. A device that also listens to GLONASS, Galileo and BeiDou has more satellites to choose from. Geotab's GO10 tracks all four constellations and rates its accuracy at about 1.5 m CEP-50 in open sky, with a hot-start fix in under 2 seconds and a cold start in under 45 seconds.

Accuracy drops for the same reasons on any receiver. GPS.gov names satellite signal blockage by buildings, bridges and trees, indoor or underground use, and signals reflected off buildings as the common causes, and it puts a GPS-enabled smartphone at within 4.9 m (16 ft) under open sky. That is why a truck in a parking garage shows its last good position, and a truck downtown can jump a street over for a few seconds.

The current GO10 suits modern light and heavy vehicles, and Geotab states its limits plainly. It does not support the PWM and JPW protocols, which limits coverage on legacy heavy-duty and off-road equipment built before 2010. In a mixed fleet, check each older truck and machine before ordering.

The GO10 connects to the vehicle through a harness: Geotab lists 16-pin light-duty and heavy-duty OBD-II T-harnesses and a 3-wire kit for it. In the US, Geotab says the GO10 and GO10 Plus have not been granted a CARB Executive Order exemption and must not be installed on vehicles registered or primarily operated in California until one is issued.

For harsh conditions, the GO10 is rated to operate from -40 °C to +85 °C. A supercapacitor stores enough energy to save data to memory and attempt a last-gasp message if the vehicle's power is cut, and a 3D accelerometer with a range of ±16 g records hard braking, cornering and impacts.
